Overview

The Diesel Fuel System is a mission-critical system that ensures diesel is transferred from the underground diesel fuel tank to every generator set day tank within a stipulated time effectively, without compromising the standard stream of electrical supply to data centre facilities in the event of a power transfer from the normal power grid source (due to a power outage, breakdown, etc.) to the emergency source.

Main Components in A Diesel Fuel System

Fill In Station

‍

Diesel Storage Tank

‍

Motorized Valve

‍

Submersible Pump

‍

Fuel Polishing System

‍

Fuel Transfer Pump

‍

Fuel Transfer Control Panel

Fuel System Design Requirements

Fuel systems for data centers are characterized by generally large loads and run-time durations, requiring substantial quantities of fuel on-site. The systems are designed with standard components but with redundancy to avoid single points of failure. The redundancy requires monitoring of component status and automatic switching to alternate components when failure is indicated. These monitoring and auto-switch functions require advanced PLC control systems. The systems are also highly monitored by BMS systems.

Tier 1: Single flow and power path without redundancy. Manual bypass of components allows for operator over-ride.

Tier 2: Single flow and power path with dual components.

Tier 3: Dual flow and power paths with one active. Dual components such that one can be maintained while the other is active.

Tier 4: Dual flow and power paths with dual active. Dual components such that one can be maintained while the other is active.

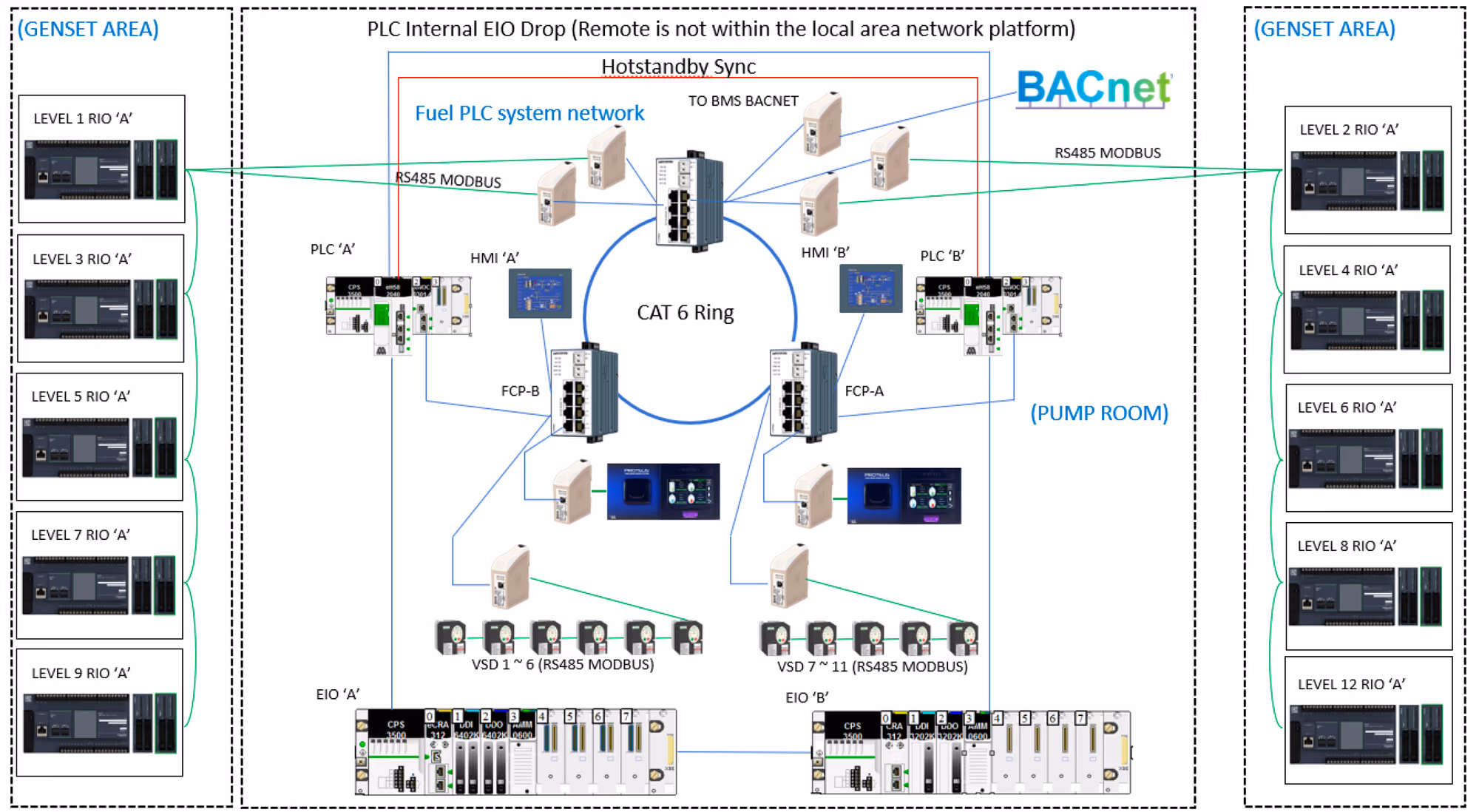

Typical System Architecture of Tier 4 Design

Highlights

• CPU Hot standby PLCs
• N+1 Control Strategies
• Hot swappable IO modules
• Network Ring Topologies
